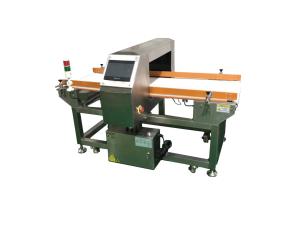

Food Metal Detector
Application:
The equipment is widely used in Aquatic products,meat and poultry products,
preserved food,flour products,dried fruit,vegetables ,chemical materials and so
on to ensure contaminated product is detected.
Characteristics:
1 Adapt phase discriminating technology that can effectively refrain product effect;
2 Adapt advanced DSP technology and leading intelligent algorithm which can improve
detection sensitivity and promote stability of the machine;
3 Be able to detect various metals like iron, stainless teel,copper and aluminum, etc;
4 LCD display, Chinese & English operating menu;
5 Self-learning function contributes to automaticallychoose suitable working parameters
according to different products;
6 Memory function for registering various products(Max: Over 20 Items);
7 Simple conveyor structure makes it convenient to disassembleand assemble;
8 Special design of conveyor belt to avoid deviation;
9 Made of stainless steel, fairly good waterproof ability;
10Excellent quality with attractive price.
Technical Parameter:
| Name |
Conveyorised Metal Detection Systems |
| Model |
FMD-3015 |
| Specifications |
4012 |
| Main Material |
All made in stainless steel 304 |
| Detection sensitivity(without product) |
Fe≥φ 0.7mm Sus304≥φ 1.5mm |
| Effective Search coil opening Width |
300mm |
| Effective Search coil opening Height |
150mm |
| Belt Width |
280mm |
| Belt Speed |
28m/min |
| Height from the floor to the conveyor belt |
750 ±30 mm |
| Rejector |
When metal is detected, alarm sounds, belt stops |
|
Note:
1 The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The sensitivity would be affected according to
the products being inspected and working condition.
2 Requirements for different sizes by customers can be fulfilled.
