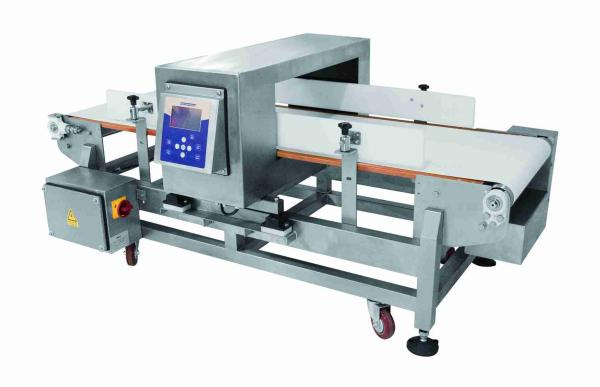

1500mm Digital Metal Detector Chain Conveyor For Meat Poultry Products
Digital Metal Detector (chain conveyor) for Meat and Poultry Products
Application:
The equipment is widely used in Aquatic products,fresh meat,frozen meat ,preserved meat,and poultry products,
and so on to ensure contaminated product is detected.
Characteristics:
1 Adapt phase discriminating technology that can effectively refrain product effect;
2 Adapt advanced DSP technology and leading intelligent algorithm which can
improve detection sensitivity and promote stability of the machine;
3 Be able to detect various metals like iron, stainless teel,copper and aluminum, etc;
4 Chinese & English operating menu;
5 Self-learning function contributes to automaticallychoose suitable working parameters
according to different products;
6 Memory function for registering various products(Max: Over 20 Items);
7 Simple conveyor structure makes it convenient to disassembleand assemble;
8 Special design of conveyor belt for aquatic products and frozen foods;
9 Made of stainless steel, fairly good waterproof ability;
10Excellent quality with attractive price.
Technical Parameters:
| Model |
3009 |
3012 |
3015 |
4009 |
4012 |
4015 |
4017 |
4020 |
5509 |
5520 |
5525 |
| Height (mm) |
90 |
120 |
150 |
90 |
120 |
150 |
170 |
200 |
90 |
200 |
250 |
| Width (mm) |
300mm |
400mm |
500mm |
| Body Length(mm) |
1500mm |
| Conveyor |
32m/min |
| Max Capacity |
10KG |
50KG |
| Sensitivity |
FE |
0.7 |
0.8 |
1.0 |
0.8 |
1.0 |
1.0 |
1.2 |
1.2 |
0.8 |
1.2 |
2.0 |
| NFE |
1.0 |
1.2 |
1.5 |
1.0 |
1.2 |
1.5 |
1.8 |
1.8 |
1.2 |
2.0 |
2.5 |
| SUS304 |
1.5 |
1.5 |
2.0 |
1.5 |
1.5 |
2.0 |
2.5 |
2.5 |
1.5 |
2.5 |
3.0 |
| Power |
AC220V±10% 50Hz (60Hz) |
| Operation Mode |
Button |
| Alarm |
Alarm to stop transfer or reject setting |
| Waterproof |
IP54/IP66 |
| Working Environment |
Temperature:-10℃～40℃,Humidity:30%～95% |
| Body Construction |
Stainless Steel 304 |
